Monday, January 21, 2019

Video Showing How Energy Storage System Works

Solar Energy Storage Systems

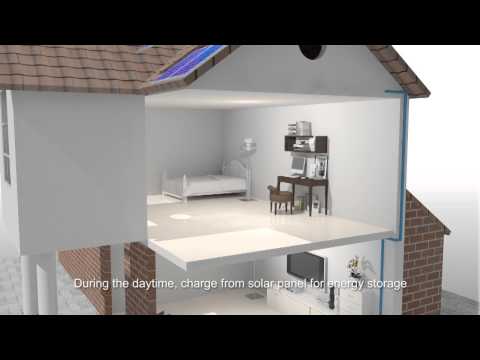

This video explains how our small Residential Energy Storage Systems charge from solar panels during the day and then power the house at night, thus reducing electricity consumption and lowering your power bill. Another great feature of the Home Battery Storage System is the UPS function which ensures continuous electricity during a power outage.

The manufacturer warranties these Energy Systems for 5 years and the ones with 3000 Watts or 5000 Watts output come with a Solar Inverter and a Charge Controller. The Portable Storage Systems are designed for use in case of emergencies, in remote areas, health centers, disaster and rescue services, farms, electrical tools, and outdoor activities such as camping, hiking, or military use.

A storage system is different than a grid-tied solar system because rooftop solar panels won’t power your home during a power outage with the grid-tied system even if your panels are getting sunlight. A Battery Storage System allows you to pull power from your batteries instead of the grid even when the solar panels aren’t generating power.

Lithium Batteries are much preferred over Lead-Acid Batteries because of the longer lifespan and higher depth of discharge of the Lithium Batteries. Even though Lead-Acid Batteries cost a bit less, they have a shorter lifespan and require more maintenance which makes Lithium Batteries a much wiser choice for most applications.

Contact us for the perfect storage system for your needs at a great price!

Here are the specifications for the 4 models of 3000 Watts Battery Energy Storage Systems for Residential, Boat, and Light Commercial with a 5 Year Manufacturer’s Warranty:
Model – PS6530B - $4,090 for 1 each
Battery Power
·        Nominal Lithium Battery Pack Voltage: 48 Volts, 6,630Wh
Output
·        AC Output: 3000W (Voltage is adjustable); Pure Sine Wave, Power Frequency Inverter Output
·        Peak Output: 4000W
·        Output Voltage: 120V or 240V
·        Output Frequency: 50Hz/60Hz
·        Overload Ability: 120%<load<130% @10min; 130%<load<150% @10s
·        Equal to Off-line UPS Function
·        On/Off-grid Operation
·        Max Efficiency: 92% (>70% Load)
·        110VAC Output Power is 2000W
AC Charge
·        Input: Photo-Voltaic MPPT-2000W and AC 2400W Input
·        Input Voltage: 88-264VAC
·        Power Factor: >0.95 (full load)
·        Max Efficiency: 92%
PV Charge
·        Max Input Power: 2400W
·        Start-up Voltage: 75VDC
·        MPPT Amount: 2
·        MPPT Input Voltage: 75~140VDC
·        Max Input Voltage: 150VDC
·        MPPT Efficiency: 99.5%
·        Max Efficiency>96%
Additional Information
·        Relative Humidity: 5%~90%
·        Temperature: 32F~113F (0C~45C)
·        Dimensions: 30.6 * 13.7 * 35.9 in. (779 * 350 * 912 mm)
·        Weight: 297 Lbs. / 135 Kg
·        Shipping Weight: 363 Lbs. / 165 Kg

Model – PS7530B - $4,414 for 1 each
Battery Power
·        Nominal Lithium Battery Pack Voltage: 48 Volts, 7,500Wh
Output
·        AC Output: 3000W (Voltage is adjustable); Pure Sine Wave, Power Frequency Inverter Output
·        Equal to Off-line UPS Function
·        On/Off-grid Operation
AC Charge
·        Input: Photo-Voltaic MPPT-2000W and AC 2400W Input
Additional Information
·        LCD Display

Model – PS8030B - $4,538 for 1 each
Battery Power
·        Nominal Lithium Battery Pack Voltage: 48 Volts, 8,000Wh
Output
·        AC Output: 3000W (Voltage is adjustable): Pure Sine Wave, Power Frequency Inverter Output
·        Peak Output: 4000W
·        Output Voltage: 120V or 240V
·        Output Frequency: 50Hz/60Hz
·        Overload Ability: 120%<load<130% @ 10min; 130%<load<150% @ 10s
·        Equal to Off-line UPS Function
·        On/Off-grid Operation
·        Max Efficiency: 92% (>70% Load)
·        110VAC Output Power is 2000W
AC Charge
·        Input: Photo-Voltaic MPPT-2000W and AC 2400W Input
·        Input Voltage: 88~264VAC
·        Power Factor: >0.95 (full load)
·        Max Efficiency: >92%
PV Charge
·        Max Input Power: 2400W
·        Start-up Voltage: 75VDC
·        MPPT Amount: 2
·        MPPT Input Voltage: 75~140VDC
·        Max Input Voltage: 150VDC
·        MPPT Efficiency: 99.5%
·        Max Efficiency: >96%
Additional Information
·        Relative Humidity: 5%~90%
·        Temperature: 32F~113F (0C~45C)
·        Dimensions: 30.6 * 13.7 * 35.9 in. (779 * 350 * 912 mm)
·        Weight: 346 Lbs. / 157 Kg
·        Shipping Weight: 381 Lbs. / 173 Kg

Model – PS12030B - $7,070 for 1 each
Battery Power
·        Nominal Lithium Battery Pack Voltage: 48 Volts, 12,000Wh
Output
·        AC Output: 3000W (Voltage is adjustable); Pure Sine Wave, Power Frequency Inverter Output
·        Peak Output: 4000W
·        Output Voltage: 120V or 240V
·        Output Frequency: 50Hz/60Hz
·        Overload Ability: 120%<load<130% @ 10 min; 130%<load<150% @ 10s
·        Equal to Off-line UPS Function
·        On/Off-grid Operation
·        Max Efficiency: 92% (>70% Load)
·        110VAC Output Power is 2000W
AC Charge
·        Input: Photo-Voltaic MPPT-2000W and AC 2400W Input
·        Input Voltage: 88~264VAC
·        Power Factor: >0.95 (full load)
·        Max Efficiency: 92%
PV Charge
·        Max Input Power: 2400W
·        Start-up Voltage: 75VDC
·        MPPT Amount: 2
·        MPPT Input Voltage: 75~140VDC
·        Max Input Voltage: 150VDC
·        MPPT Efficiency: 99.5%
·        Max Efficiency: >96%
Additional Information
·        Relative Humidity: 5%~90%
·        Temperature: 32F~113F (0C~45C)
·        Shipping Weight: 527 Lbs. / 239 Kg
